Temporally Resolved Thermal Sensor
Home
Project Samples
Technology Partnerships
SBIRs and STTRs
Core Technologies
About us
Contact


The Temporally Resolved Thermal Sensor is a multi-color optical pyrometer for non-invasive measurements of very high-speed, and very high-temperature events.  The battery operated unit (fully-functional breadboard shown here) is simply aimed at the object or interest with the assistance of a visible aiming laser.  An easy to use Graphical User Interface (GUI) steps the user through automated calibration, alignment, and sensor operation.  Data is both presented graphically to the user (computer not shown) and is stored for additional off-line processing and data retrieval.  The Temporally Resolved Thermal Sensor was originally developed by A2Z Technologies Corporation for the US Navy under the Small Business Innovative Research (SBIR) Program.

Breadboard

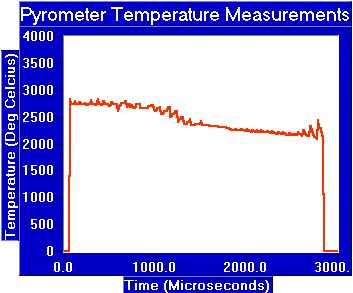

Applications of the sensor includes the measurement of high-speed, single-shot, high-temperature events.  One such example is during the testing of certain reactive materials currently in development.  The plot below shows data collected by the functional breadboard during a live-fire reactive material test.

Temperature Response Plot

Key Benefits/Features

bulletTemperature Range = 1500 - 8000 K
bulletÁs Sampling Times
bullet10 Bit Digital Resolution
bulletVisible Aiming Laser
bulletOperation in high-EMI Environments
bulletPost Test Processing < 1 Minute
bulletField-of-view ~7 mrads
bulletHigh-resolution, time-resolved temperature plots
bulletGUI Interface
bulletASCII Data (and other) format outputs





Did You Know?

Did you know that the surface temperature of the sun (by a best-fit blackbody curve) is approximately 6000 K?
